Topic 5: Core concepts

D.1 Hosts, clients, and servers

MCP names three roles. Getting them straight early saves confusion in every later module.

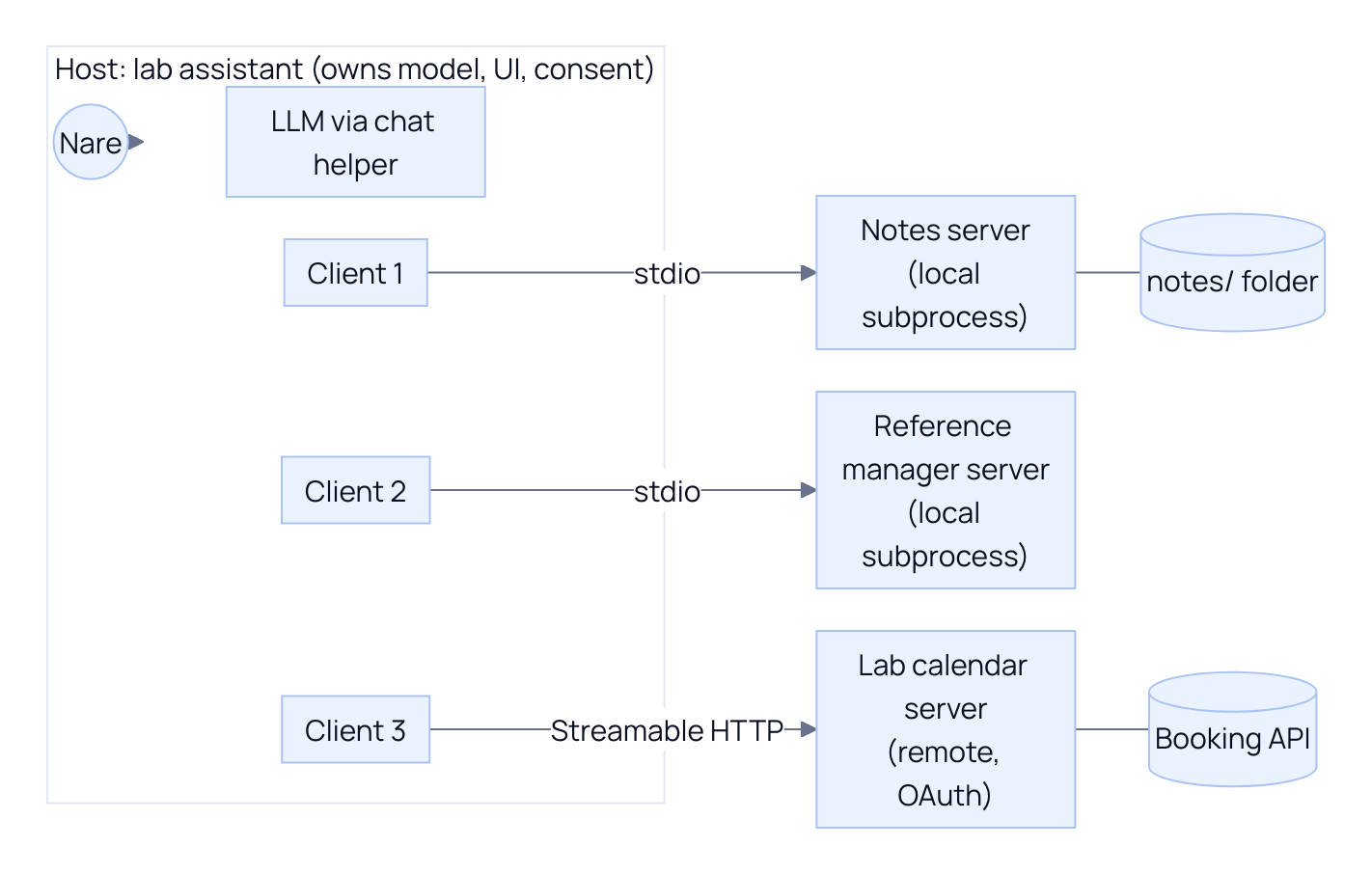

• The host is the AI application the user actually runs: a desktop chat app, a code editor, a CLI agent, or the lab assistant you build in Module 6. The host owns the conversation with the model, the user interface, and the security decisions: which servers to connect to, which tool calls need the user's approval, and what data may leave the machine.
• A client is a connector inside the host that talks to exactly one server. A host that uses three servers runs three clients. In C.3, each async with Client(...) block was one client.
• A server is a program that exposes capabilities (tools, resources, prompts) over MCP. It can be a local subprocess (stdio) or a remote service (Streamable HTTP).

Why one client per server? Isolation. The specification's design principles say servers should not be able to read the whole conversation, nor "see into" other servers. Each client carries only its own server's traffic, so the notes server never sees what the calendar server returned, and the host decides what, if anything, crosses between them. It also keeps failures contained: a crashed server takes down one client, not the host.

The model never talks to a server directly. The model proposes a tool call; the host decides whether to run it; the right client sends it to its server. That position in the middle is what lets a host enforce consent (Module 6) and security policy (Module 8).

D.2 JSON-RPC 2.0 as the foundation

Every MCP message is a JSON-RPC 2.0 message. JSON-RPC is a tiny, long-established convention for remote procedure calls in JSON. It has three message kinds:

MCP adds its own rules on top. In the 2026-07-28 revision the protocol is stateless: there is no connection handshake, and every request carries its own protocol version and client capabilities inside params._meta under the keys io.modelcontextprotocol/protocolVersion and io.modelcontextprotocol/clientCapabilities. Over Streamable HTTP, a request also repeats the important routing facts in HTTP headers: MCP-Protocol-Version, Mcp-Method (the JSON-RPC method), and, for tools/call, prompts/get, and resources/read, Mcp-Name (the tool name, prompt name, or resource URI). Headers let proxies, gateways, and load balancers route and filter requests without parsing the body.

The best way to learn a wire format is to look at it. Start the server from C.2 over HTTP in the background, then send raw requests with curl.

PYTHONPATH=. python examples/m01_first_server.py --http 8010 > server.log 2>&1 &
SERVER_PID=$!
sleep 2
bash examples/m01_wire.sh
kill $SERVER_PID

Code explained

• In simple words: we start the notes server on a local port, then play the part of the client by hand, typing the exact messages a client would send.
• What happens: the first line starts the Streamable HTTP server on port 8010 and sends its logs to server.log; $! captures its process id so we can stop exactly that process at the end with kill. sleep 2 gives uvicorn time to start. m01_wire.sh (below) sends four POST requests and pretty-prints each JSON response with the HTTP status and byte counts.
• Comes out: the two successful exchanges are shown and explained block by block in the rest of this section. The last two, deliberate mistakes, print:
  textCopy

  == tools/call without the Mcp-Name header (a deliberate mistake)
  {
    "jsonrpc": "2.0",
    "id": 3,
    "error": {
      "code": -32020,
      "message": "mcp-name header does not match the request body's 'name' parameter"
    }
  }
  HTTP 400, 220 bytes up, 127 bytes down
  == tools/list without the _meta envelope (another deliberate mistake)
  {
    "jsonrpc": "2.0",
    "id": 4,
    "error": {
      "code": -32602,
      "message": "params._meta must be an object carrying the required 'io.modelcontextprotocol/protocolVersion' and 'io.modelcontextprotocol/clientCapabilities' envelope keys"
    }
  }
  HTTP 400, 58 bytes up, 218 bytes down

  Both failures are JSON-RPC errors (an error object instead of a result), sent with HTTP 400. Code -32602 is JSON-RPC's standard "Invalid params". Code -32020 is MCP's HeaderMismatch, from the range -32020 to -32099 that the 2026-07-28 revision reserves for the MCP specification. The messages tell you precisely what to fix. If you ever write a client by hand, these two are the errors you will meet first.

Here is the script itself.

#!/usr/bin/env bash
# Module 1: raw JSON-RPC 2.0 over Streamable HTTP (protocol revision 2026-07-28).
# Start the server first:  PYTHONPATH=. python examples/m01_first_server.py --http 8010 &
URL="${MCP_URL:-http://127.0.0.1:8010/mcp}"
META='"_meta":{"io.modelcontextprotocol/protocolVersion":"2026-07-28","io.modelcontextprotocol/clientCapabilities":{}}'

post() {  # usage: post <Mcp-Method> <Mcp-Name or ""> <json body>
  local name_header=()
  [ -n "$2" ] && name_header=(-H "Mcp-Name: $2")
  curl -sS "$URL" \
    -H 'Content-Type: application/json' \
    -H 'Accept: application/json, text/event-stream' \
    -H 'MCP-Protocol-Version: 2026-07-28' \
    -H "Mcp-Method: $1" "${name_header[@]}" \
    -w '\nHTTP %{http_code}, %{size_upload} bytes up, %{size_download} bytes down\n' \
    -d "$3" | python -c 'import json,sys; body, status = sys.stdin.read().rsplit("\n", 2)[:2]; print(json.dumps(json.loads(body), indent=2)); print(status)'
}

echo "== tools/list"
post tools/list "" '{"jsonrpc":"2.0","id":1,"method":"tools/list","params":{'"$META"'}}'

echo "== tools/call"
post tools/call search_notes '{"jsonrpc":"2.0","id":2,"method":"tools/call","params":{"name":"search_notes","arguments":{"query":"nap study","limit":1},'"$META"'}}'

echo "== tools/call without the Mcp-Name header (a deliberate mistake)"
post tools/call "" '{"jsonrpc":"2.0","id":3,"method":"tools/call","params":{"name":"search_notes","arguments":{"query":"nap"},'"$META"'}}'

echo "== tools/list without the _meta envelope (another deliberate mistake)"
post tools/list "" '{"jsonrpc":"2.0","id":4,"method":"tools/list","params":{}}'

Code explained

• In simple words: a tiny hand-made MCP client in about twenty lines of shell, so nothing is hidden behind an SDK.
• What happens: META holds the _meta envelope every 2026-07-28 request needs; the client capabilities object is empty because this "client" offers nothing back to the server. post() sends one POST with the required headers: Content-Type, an Accept header allowing either a plain JSON reply or an SSE stream (the server chooses), MCP-Protocol-Version, Mcp-Method, and Mcp-Name when a name is given. curl -w appends status and byte counts; the small Python one-liner pretty-prints the JSON body and then the status line. The four calls are tools/list, tools/call, and the two deliberate mistakes.
• Comes out: see the previous box for the error cases and the next four blocks for the successful exchanges. Your byte counts will match; the server log in server.log shows one POST /mcp line per request.

The tools/list request, as the script sends it (pretty-printed here for reading):

{
  "jsonrpc": "2.0",
  "id": 1,
  "method": "tools/list",
  "params": {
    "_meta": {
      "io.modelcontextprotocol/protocolVersion": "2026-07-28",
      "io.modelcontextprotocol/clientCapabilities": {}
    }
  }
}

Code explained

• In simple words: "Hello, I speak MCP 2026-07-28 and offer nothing special; what tools do you have?"
• What happens: jsonrpc is always "2.0". id is chosen by the client and echoed in the response so replies can be matched to requests. method names the operation. params._meta is the per-request envelope that replaces the old connection handshake: because every request states its own version and capabilities, any server replica can answer any request with no memory of earlier ones. The HTTP headers MCP-Protocol-Version: 2026-07-28 and Mcp-Method: tools/list repeat the version and method.
• Comes out: the server replies with HTTP 200 and the next block. The request is 170 bytes on the wire.

The real tools/list response:

{
  "jsonrpc": "2.0",
  "id": 1,
  "result": {
    "cacheScope": "private",
    "resultType": "complete",
    "tools": [
      {
        "description": "Search the user's research notes by keyword and return the best matching notes.",
        "inputSchema": {
          "type": "object",
          "properties": {
            "query": {
              "title": "Query",
              "type": "string"
            },
            "limit": {
              "default": 5,
              "title": "Limit",
              "type": "integer"
            }
          },
          "required": [
            "query"
          ],
          "title": "search_notesArguments"
        },
        "name": "search_notes",
        "outputSchema": {
          "properties": {
            "result": {
              "items": {
                "additionalProperties": true,
                "type": "object"
              },
              "title": "Result",
              "type": "array"
            }
          },
          "required": [
            "result"
          ],
          "title": "search_notesOutput",
          "type": "object"
        }
      }
    ],
    "ttlMs": 0,
    "_meta": {
      "io.modelcontextprotocol/serverInfo": {
        "name": "notes-m01",
        "version": ""
      }
    }
  }
}

Code explained

• In simple words: the server's menu, in a format any client in any language can read.
• What happens: id: 1 matches the request. tools holds one definition: name, description (the docstring), inputSchema (generated from query: str, limit: int = 5), and outputSchema (generated from list[dict], wrapped under result). On the wire, field names are camelCase (inputSchema); the Python SDK exposes them as snake_case attributes (tool.input_schema). resultType: "complete" marks an ordinary final result (the alternative, "input_required", is how a 2026-07-28 server asks for more input; Part D.3 and Module 4). ttlMs and cacheScope are caching hints new in 2026-07-28: ttlMs: 0 means "do not assume this list stays fresh" and "private" means shared proxies must not cache it. _meta carries the server's identity; version is empty because our prototype did not pass version= to MCPServer (the canonical server in Module 5 does).
• Comes out: 696 bytes. Compare the inputSchema here with the hand-written parameters in C.1: same shape, but generated from type hints, so it cannot drift away from the code. It also lacks the parameter descriptions we wrote by hand; the Module Lab measures that difference, and Module 3 adds descriptions back with Field(description=...).

The tools/call request (sent with headers Mcp-Method: tools/call and Mcp-Name: search_notes):

{
  "jsonrpc": "2.0",
  "id": 2,
  "method": "tools/call",
  "params": {
    "name": "search_notes",
    "arguments": {"query": "nap study", "limit": 1},
    "_meta": {
      "io.modelcontextprotocol/protocolVersion": "2026-07-28",
      "io.modelcontextprotocol/clientCapabilities": {}
    }
  }
}

Code explained

• In simple words: "Please run search_notes with these arguments."
• What happens: params.name picks the tool, params.arguments must match its inputSchema, and the _meta envelope is repeated because every request stands alone. The Mcp-Name header must equal params.name; the first deliberate mistake above left it out and got -32020.
• Comes out: 236 bytes up; the response follows.

The real tools/call response:

{
  "jsonrpc": "2.0",
  "id": 2,
  "result": {
    "content": [
      {
        "text": "{\n  \"note_id\": \"lab-sync-2026-09-02\",\n  \"title\": \"Lab sync, 2 September 2026\",\n  \"score\": 2,\n  \"snippet\": \"Attendees: Priya, Tomas, Nare.\"\n}",
        "type": "text"
      }
    ],
    "isError": false,
    "resultType": "complete",
    "structuredContent": {
      "result": [
        {
          "note_id": "lab-sync-2026-09-02",
          "title": "Lab sync, 2 September 2026",
          "score": 2,
          "snippet": "Attendees: Priya, Tomas, Nare."
        }
      ]
    },
    "_meta": {
      "io.modelcontextprotocol/serverInfo": {
        "name": "notes-m01",
        "version": ""
      }
    }
  }
}

Code explained

• In simple words: the result, written twice on purpose: once as text for the model, once as JSON for your code.
• What happens: content is a list of content blocks the host can hand to the model; here one text block per hit (with limit: 2 you would get two blocks). structuredContent is the same data as JSON matching outputSchema, so application code never has to parse text. isError: false says the tool ran. If the tool itself fails (for example, calling a tool name the server does not have), the server still returns a result, with isError: true and the message in content, so the model can read it and try again; a JSON-RPC error is reserved for protocol-level problems like the header mismatch above.
• Comes out: 510 bytes for one hit. That number is worth noticing: every byte of content becomes model input tokens, which is why later modules keep results small and link to full notes instead of inlining them.

For completeness, calling a method the server does not implement gives the classic JSON-RPC error (real output, captured with the same curl pattern and Mcp-Method: notes/delete):

{"jsonrpc":"2.0","id":9,"error":{"code":-32601,"message":"Method not found","data":"notes/delete"}}

Code explained

• In simple words: "I don't know how to do that", in the standard JSON-RPC way.
• What happens: -32601 is JSON-RPC's reserved "Method not found" code, and the server echoes the unknown method in data. MCP methods are a fixed, published set (tools/list, tools/call, resources/read, prompts/get, server/discover, and others), so a typo in a method name fails loudly rather than silently.
• Comes out: sent with HTTP 404. Contrast with an unknown tool name, which is a tools/call that succeeds at the protocol level and returns isError: true.

That is as deep as we go on the wire in this module. Module 2 covers the full message lifecycle, server/discover, the legacy initialize handshake, notifications, SSE streaming, and every transport rule.

D.3 Primitives: what servers offer, what clients offer

A primitive is one kind of thing that can cross the protocol. Servers offer three.

• Tools are functions the model can call to act or to fetch information: search_notes, and later create_note. Each has a name, a description, and an input schema. This module's server has one.
• Resources are readable content identified by a URI, like notes://sleep-and-memory for one note or notes://index for the list of all notes. The host (or the user) decides which to attach to the model's context. Module 4 adds them to the notes server.
• Prompts are reusable, parameterised message templates the server offers for the user to pick, such as a summarise_topic prompt that appears as a slash command in a host's UI. Module 4 adds it.

Clients can also offer features back to servers. In the 2026-07-28 revision the core one is:

• Elicitation: a server asks the user for more information in the middle of a request, either through a small form (for example "Which tag should this note get?") or by sending the user to a URL for sensitive steps such as signing in. In 2026-07-28 this happens through Multi Round-Trip Requests (MRTR): instead of the server sending its own request to the client, it returns a result with resultType: "input_required" listing what it needs, and the client retries the original request with the answers. You saw resultType: "complete" in every result above; "input_required" is the other value.

Two older client features are deprecated by SEP-2577 in 2026-07-28. They still work during a deprecation window of at least twelve months (earliest removal: the first revision released on or after 2027-07-28), but new code should not adopt them:

• Sampling let a server ask the host's model for a completion. Migration: the server integrates directly with an LLM provider API if it needs a model.
• Roots let a client tell a server which directories or files it may work in. Migration: pass directories or files as tool parameters, resource URIs, or server configuration (our server gets its folder from NOTES_DIR, which is exactly this).

The same SEP also deprecates the protocol's logging feature in favour of writing logs to stderr (stdio) or using OpenTelemetry.

D.4 Control models: who decides

The three server primitives differ in who decides when they are used. The specification calls this the control hierarchy, and it is the single most useful rule for choosing a primitive.
